Valve Material Selection Guide for Your Application

Choosing the incorrect valve material can close down your whole plant.

It sounds extreme, but it happens more often than most engineers would like to admit. A valve that corrodes too quickly, cracks beneath stress, or reacts with the process fluid can cause leaks, tool damage, and unplanned downtime. These are costly issues that are almost constantly preventable.

Valve material choice is one of the most important choices in any piping system format. Get it right, and your system runs smoothly for years. Get it wrong, and you’re dealing with frequent replacements and serious safety risks. This guide examines the performance of the maximum common valve materials, what makes each one particular, and the way to inform the right material in your application.

Why Valve Material Selection Matters More Than You Think?

Many purchasers recognize valve kind first. They ask, “Do I want a ball valve or a gate valve?” That is an important question. But the material that valve is crafted from determines whether or not it’ll certainly stay in your working situations.

A stainless steel valve and a solid iron valve may additionally moreover look almost equal at the out of doors. But located them in the wrong environment, and the consequences are honestly incredible. Material choice affects several crucial important performance elements:

• Corrosion resistance in aggressive chemical or saline environments
• Pressure managing functionality beneath high-strain situations
• Temperature tolerance from cryogenic lows to superheated steam
• Compatibility with the fluid or gas flowing via the device
• Maintenance frequency and common lifecycle fee

According to a file from the American Society of Mechanical Engineers, corrosion-related screw ups account for a large portion of pipeline and valve incidents throughout business industry sectors. Selecting the best material from the start at once reduces that chance.

The Most Common Valve Materials and Their Best Uses

Understanding what every material gives facilitates you making the right call earlier than your order is located. Here is a breakdown of the materials most widely applied in industrial valve manufacturing.

Cast Iron and Ductile Iron

Cast iron is one of the oldest and most significantly used valve materials in wellknown corporation applications. It is low fee, effects to be had, and performs nicely in non-corrosive water, steam, and fuel systems.

Ductile iron is an upgraded version of forged iron. It has better tensile energy and impact resistance, making it better suitable for barely greater stressful environments. Both materials are usually applied in:

• Water supply and distribution networks
• HVAC structures
• Fire-fighting pipelines
• General utility services

However, cast-iron and ductile iron are not suitable as an alternative corrosive fluids, seawater, or very high-temperature steam. They additionally have a propensity to be brittle below sudden mechanical shocks.

Carbon Steel (WCB)

Carbon steel, regularly stated with the aid of the grade WCB (Wrought Carbon B), is the identical antique workhorse for medium to excessive-pressure business enterprise structures. It offers a fantastic balance of strength, machinability, and rate-effectiveness.

Carbon steel valves are best for:

• Oil and gasoline pipelines
• Refinery and petrochemical structures
• Power technology plant life
• Steam structures at moderate temperatures

One key catch 22 situation of carbon metal is its susceptibility to corrosion at the same time as uncovered to moisture or aggressive chemicals without proper surface treatment. It normally requires shielding coatings or lining in corrosive environments.

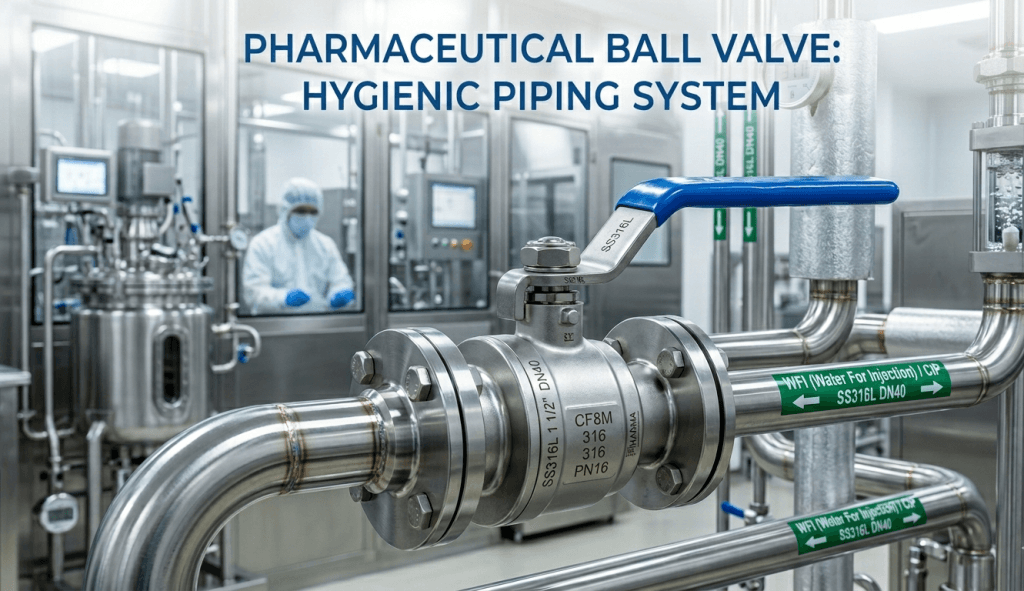

Stainless Steel (SS304 and SS316)

Stainless metal is the pass-to material at the same time as corrosion resistance is a top priority. It consists of chromium and, in SS316, molybdenum, which gives it wonderful resistance to rust, oxidation, and chemical attack.

SS304 is appropriate for extremely-modern-day corrosive environments like slight acids and water remedy. SS316 offers even better resistance and is preferred in:

• Pharmaceutical and meals processing industries
• Chemical and fertilizer flowers
• Marine and offshore packages
• Cryogenic and LNG systems

Stainless metal valves are higher initial investment, however their lengthy provider lifestyles and low upkeep goals frequently lead them to the greater low value preference over the long term. If you’re searching out stainless steel valve options, Xsis Valves offers an entire variety built to global requirements.

Alloy Steel

Alloy metallic valves are engineered for extreme conditions. They contain factors like chromium, molybdenum, and vanadium, which dramatically enhance their common performance at excessive temperatures and pressures.

These valves are typically actual for:

• Superheated steam strains in strength flora
• High-stress boiler structures
• Hydrogen issuer packages
• Heavy refinery operations

Alloy steel is usually greater pricey and requires more unique manufacturing. However, in essential high-temperature applications, there can be no alternative.

Brass and Bronze

Brass and bronze valves are most times implemented in smaller-diameter, low-strain programs. They provide herbal corrosion resistance and are clean to use. You will often see them in:

• Plumbing systems
• HVAC devices
• Instrumentation and control strains
• Marine system for non-important strains

Bronze, in particular, is valued in marine environments in which resistance to seawater corrosion is essential.

Key Factors to Consider When Selecting Valve Material

There isn’t any regularly occurring “wonderful” material. The right choice is based upon your unique jogging situations. Here are the factors every engineer should evaluate earlier than finalizing a valve material:

• Process fluid type: Is it water, oil, acid, gasoline, slurry, or a chemical mixture? Reactive or corrosive fluids name for better-grade materials.
• Operating temperature: Cryogenic systems want materials that stay ductile at low temperatures. High-temperature steam systems require alloy steel or high-grade stainless.
• Operating pressure: Higher strain rankings call for more potent materials like carbon steel or alloy metal in preference to solid iron.
• Fluid tempo: Fast-shifting abrasive slurries can erode softer valve materials fast.
• Regulatory and organization requirements: Pharmaceutical and food industries require materials that meet hygiene certifications. Oil and fuel programs ought to align with API or ISO necessities.
• Environmental situations: Outdoor or coastal installations need higher corrosion resistance in evaluation to indoor systems.

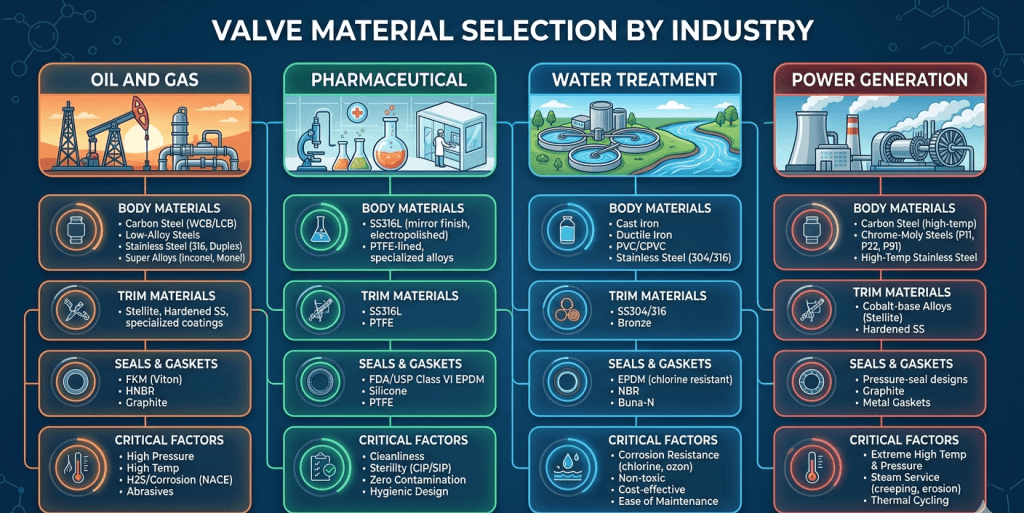

Material Selection via Industry Application

Different industries have developed favored material requirements based totally mostly on a few years of area experience. Here is a quick connection with guide your material desire with the aid of area:

• Oil and Gas: Carbon metal WCB for great lines, alloy steel for high-temperature or high-pressure provider, chrome steel SS316 for sour or corrosive media
• Pharmaceuticals and Food Processing: SS316L for cleanroom and hygienic packages, assembly GMP and FDA-properly applicable standards
• Water Treatment: Ductile iron or cast-iron for raw water, stainless steel for potable water and chemical dosing lines
• Power Generation: Alloy metallic for steam and boiler traces, carbon metal for condensate and important provider
• Chemicals and Fertilizers: SS316 or forte alloys like Hastelloy for particularly acidic or reactive environments
• Marine and Offshore: Bronze for small-bore strains, duplex stainless-steel for huge-bore and high-salinity environments

For industries like LNG and cryogenics, material choice becomes even more specialized. product variety at Xsis Valves to peer how unique valve types are matched to employer-particular material requirements.

Common Mistakes in Valve Material Selection

Even experienced engineers sometimes make material selection mistakes. These are the most not unusual errors and the way to keep away from them:

• Selecting by using fee on my own: Choosing the cheapest material without evaluating the jogging conditions frequently consequences in premature failure and higher lifecycle prices.
• Ignoring fluid chemistry: A material that works perfectly for smooth water can fail hastily on the same time as exposed to even mild acid or chloride-wealthy fluids.
• Overlooking temperature extremes: A material rated for regular temperatures also can become brittle at cryogenic degrees or lose strength at high temperatures.
• Applying cutting-edge-day organisation requirements too broadly: Not each utility inner an enterprise shares the equal requirements. Each line in a plant might also additionally need a person assessment.
• Skipping material certifications: Always request material, take a look at opinions (MTRs) and make sure compliance with applicable necessities like ASTM, API, or ISO.

According to Wikipedia, material compatibility is a foundational idea in chemical engineering that straight away governs the choice of creation materials in touch with process fluids. This precept applies similarly to valve specification in any enterprise tool.

How to Make the Final Decision on Valve Material?

Once you’ve got were given evaluated all the elements above, narrow down your alternatives via doing the subsequent:

• Define the way situations surely: fluid type, temperature, stress, and waft fee
• Consult applicable necessities to your industry (API, ASME, ISO, IBR)
• Consider the general lifecycle charge, no longer simply the acquisition charge
• Request samples or material certifications from your valve producer
• Discuss your service with a professional valve company who is aware multi-enterprise requirements

If you are uncertain which to begin,Reach out the  Xsis Valves technical team for guidance. With over 17 years of experience all through industries from oil and fuel to prescribed drugs, the group permits you to pick out the right material in your precise device necessities.

Conclusion

Valve material choice is not a step to hurry through. The material you choose out right away impacts the protection, overall performance, and lifespan of your entire piping device. Whether you need the affordability of cast iron for a water distribution line or the chemical resistance of SS316 for a pharmaceutical software, each choice wants to be grounded on your real running situations.

The key takeaway is straightforward: in shape the material to the environment, now not the alternative way spherical. When you approach valve material selection with the right knowledge, you reduce failures, cut maintenance costs, and build systems that perform reliably for years. Explore the Xsis Valves range to discover precision-engineered valves composed of the right materials on your software.
